Film Blown Machine Manufacturer | PE/PP Blown Film Line

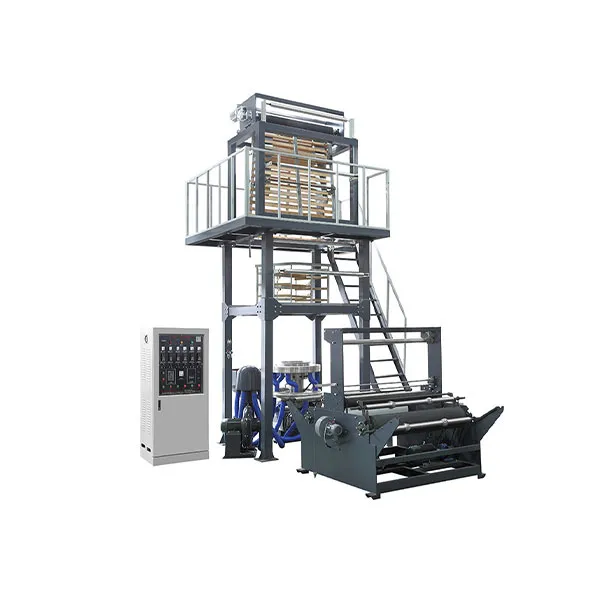

Mono layer film blowing machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP.

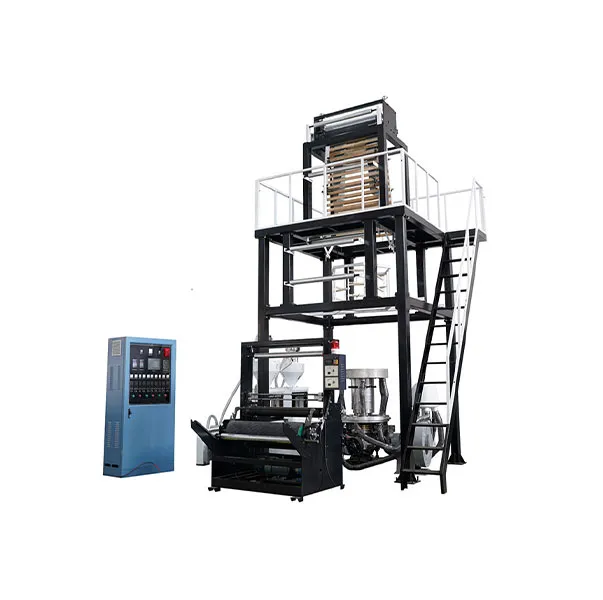

The AB Film Blowing Machine combines advanced double-layer film blowing technology with high-efficiency design to achieve high-quality, stable double-layer film production. It is widely used in industries such as food packaging and electronics, improving production efficiency and film performance to meet the diverse needs of different fields.

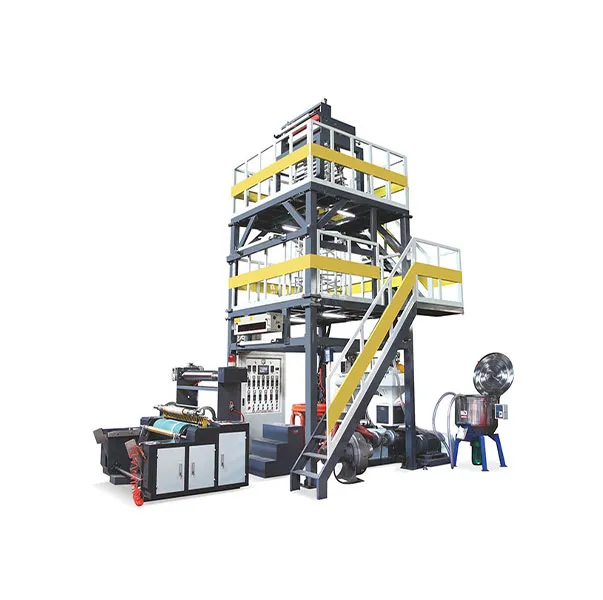

ABA film blowing machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

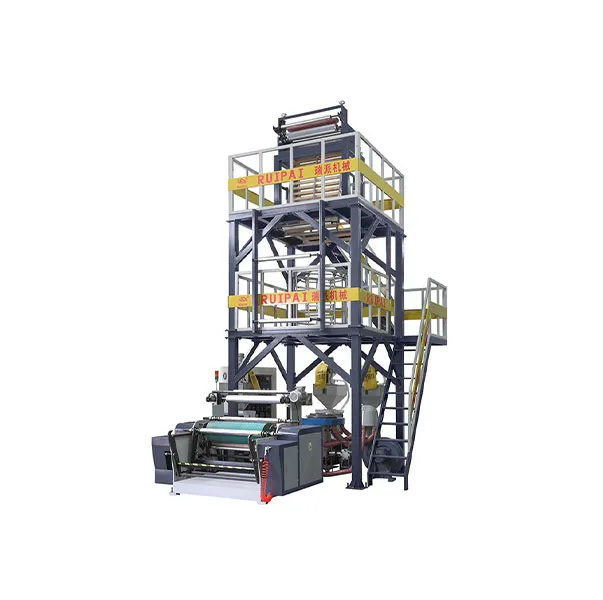

ABC film blowing machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

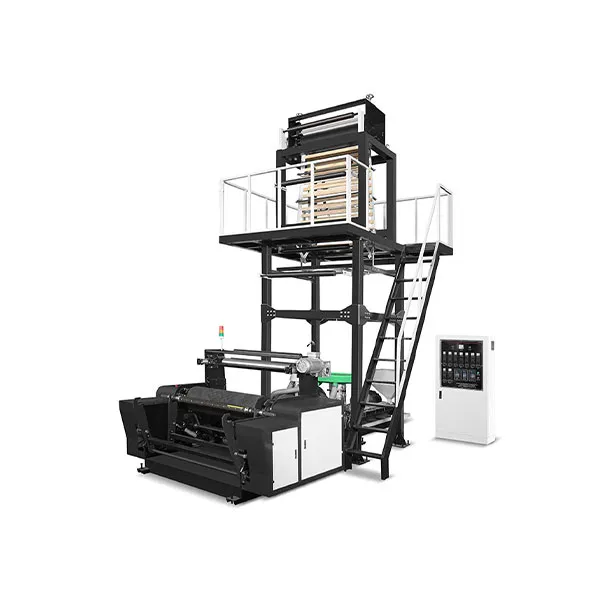

Biodegradable blown film machine

A biodegradable PLA/PBAT monolayer film blowing machine is specialized equipment designed to produce eco-friendly single-layer films from biodegradable polymers like Polylactic Acid (PLA) and Polybutylene Adipate Terephthalate (PBAT). These films are widely used in compostable packaging, agricultural mulch films, and disposable bags.

6 reasons to choose RUIPAI Film Blown Machine

Optimization of electrical system

The combination of advanced technology and high reliability design ensures stable operation and efficient support of the machine under complex working conditions.

Precise adjustment of machine height

According to the differences in raw materials and changes in the production environment, the height of the machine can be adjusted flexibly to optimize the production process and improve the efficiency and precision.

Screw and die head customization

According to the characteristics of different materials, the screw and die head can be finely designed to improve the processing efficiency and reduce the wear and maintenance cost of the equipment.

Process Details

ocus on welding, plastic spraying and other details of the production process control, so that the blown film machine has a better production efficiency

Long service life

14 years of Mexican customers, the equipment is still able to run smoothly and efficiently.

One year warranty

Within one year of warranty period, the parts will be sent out unconditionally.

ABC vs. ABA vs. AB Film Blowing Machine

Feature	ABC (3-Layer, Asymmetric)	ABA (3-Layer, Symmetric)	AB (2-Layer)
Structure	A-B-C (all layers different)	A-B-A (outer layers same)	A-B
Complexity	Highest (3 materials)	Medium (2-3 materials)	Lowest
Cost	Highest investment	Moderate	Lowest
Best For	High-barrier, specialty films	Balanced properties, cost-saving	Simple multi-layer needs

Biodegradable and Water-Soluble Film Blow Molding Machine

Biodegradable PLA/PBAT and water-soluble PVA single-layer film blow molding machines are used to produce eco-friendly packaging, agricultural films and water-soluble product packaging, respectively, to meet sustainability and diversification needs.

Typical PLA/PBAT Film Applications

Compostable bags (shopping, garbage)

Food packaging (bread wraps, vegetable bags)

Agricultural mulch films (biodegrades in soil)

Disposable hygiene products

Typical PVA Film Applications

Detergent pods (dissolves in washing machines)

Agrochemical packaging (water-soluble pesticide bags)

Embroidery backing (dissolves in warm water)

Hospital laundry bags (sanitary disposal)

View more environmental application types

FAQs Related to
Film Blown Machine

Your concerns about quality, customization, service and other issues related to Film Blown Machine are answered here, and if you have special customization needs, you can contact the experts online!

GET IN TOUCH NOW

What types of film can be produced by a blown film machine?

Blown film machines are mainly used to produce polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC) and other plastic films. Different formulas and process adjustments can produce films with different functions and properties, such as single-layer film, multi-layer film, antioxidant film, cling film and so on.

Can RUIPAI customize Film Blown Machine for special film requirements (e.g., anti-fog, stretch, or ultra-thin films)?

Yes, customization is a core advantage of RUIPAI Film Blown Machine. We adjust key components based on your film function: replace special screws for stretch film, upgrade die heads for ultra-thin films (≥0.01mm), and add functional masterbatch feeding systems for anti-fog/anti-static films, Over 80% of our clients choose customized solutions.

What is the after-sales guarantee for RUIPAI Film Blown Machine, and how to solve maintenance problems?

RUIPAI Film Blown Machine comes with a 12-month warranty for core components (screw, motor, die head). We provide 24/7 online technical support—engineers respond to fault inquiries within 1 hour, and offer remote troubleshooting via video. Spare parts are stocked in 5 regional warehouses globally, ensuring delivery within 3-5 working days. For major faults, on-site maintenance is provided within 48 hours in nearby regions.

What is the production capacity range of RUIPAI Film Blown Machine, and can it match my production scale?

RUIPAI Film Blown Machine comes with a 12-month warranty for core The standard production capacity of RUIPAI Film Blown Machine ranges from 50kg/h to 500kg/h, with customized high-capacity models available for large-scale enterprises. We calculate the exact capacity based on your target film width (100mm-5000mm) and thickness (0.01mm-0.2mm), ensuring it aligns with your daily output requirements without wasting energy.

How does RUIPAI Film Blown Machine reduce energy consumption compared to ordinary models?

RUIPAI integrates three core energy-saving technologies into Film Blown Machine: 1) High-efficiency variable frequency motors reduce idle power waste by 30%. 2) Precision temperature control system (error ±1℃) avoids overheating of raw materials. 3) Insulated barrel design reduces heat loss. Actual data shows our machines save 15-25% energy per ton of film compared to industry averages.

What installation and commissioning support does RUIPAI provide for Film Blown Machine?

RUIPAI offers one-stop installation and commissioning services for Film Blown Machine: 24/7 Remote Technical Support；40% Shorter Retrofit Cycle Than Peers；48 Hours Direct Delivery of Frequently Used Parts。

Has RUIPAI Film Blown Machine passed international quality certifications, and what quality control measures are in place?

RUIPAI Film Blown Machine fully complies with international standards, holding CE, ISO 9001, and SGS certifications. Our quality control covers the entire production process: 1) Raw material inspection (adopts high-quality alloy steel for screws). 2) 72-hour continuous operation testing before delivery. 3) Precision detection of film thickness uniformity (error ≤±3%) via professional instruments, ensuring each machine meets industrial-grade production requirements.

Compared with competitors, what advantages does RUIPAI Film Blown Machine have in performance and cost-effectiveness?

RUIPAI Film Blown Machine has three core competitive edges: 1) Higher stability—continuous operation time reaches 8000 hours/year (20% longer than industry average). 2) Lower comprehensive cost—energy-saving design + long service life reduces per-unit film production cost by 10-15%. 3) Stronger adaptability—supports multi-material and multi-specification production, avoiding the need for multiple machines. Many clients report recovering the investment within 12-18 months.

Does RUIPAI provide technical training and long-term technical updates for Film Blown Machine users?

Yes, we offer comprehensive technical support for long-term cooperation: 1) Free on-site training for 5-8 operators (covers operation, maintenance, and simple troubleshooting). 2) Annual technical seminars to share the latest film production technologies (e.g., biodegradable film processing). 3) Provide paid technical upgrade services for old machines (e.g., adding automatic thickness control systems), helping you keep up with market demand changes.

What are the common faults of RUIPAI Film Blown Machine, and how to troubleshoot them quickly?

Common faults and solutions are optimized for user-friendliness: 1) Unstable bubble: Check air ring pressure (adjust to 0.3-0.5MPa) or raw material moisture (dry at 80℃ for 2 hours). 2) Uneven film thickness: Calibrate die head gap or adjust traction speed. 3) Film surface scratches: Clean die head residue or replace traction roller. We also include a detailed troubleshooting manual with each machine, and our technical team provides real-time guidance.
