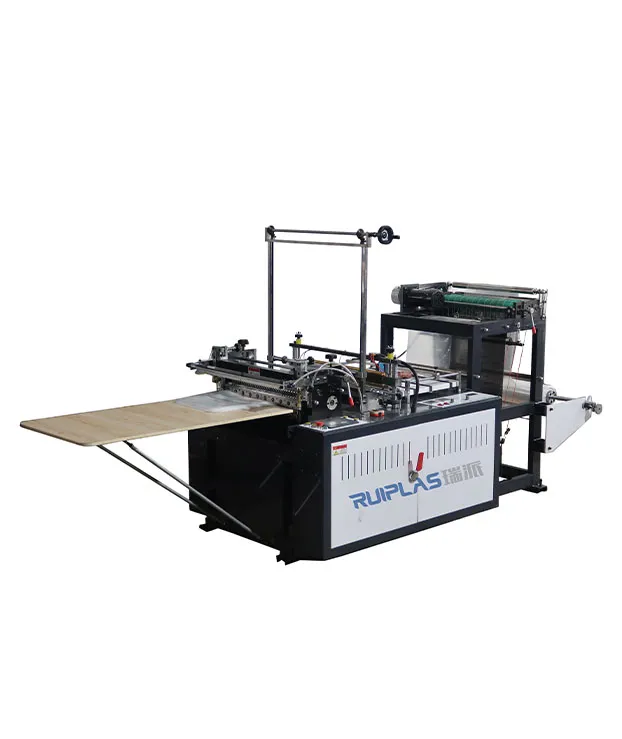

Cold Cutting Plastic Bag Making Machine

Bottom sealing bag making machine is a specialized device designed to produce plastic bags with a sealed bottom, commonly used for shopping bags, merchandise bags, and flat-bottom pouches.

Features:

Max. Bag making width	550mm
Max. Bag making length	1600mm
Bag making speed	30-130pcs/min
Main power	1.1KW

Get a Quote Play Product Video Download

Advantages of Mono layer Blown Film:

Maximum Bag Width: Up to 1150mm (model RP-FQ1200), suitable for various bag sizes
Production Speed: 30-130pcs/min, balancing efficiency and precision
Material Versatility: Supports PE, PP, PVC, with customizable raw material options
Energy Efficiency: Main power as low as 1.1KW (model RP-FQ600), reducing operational costs
Flexible Production: Ideal for small-batch orders with quick specification switching capability
Easy Maintenance: Modular design for simplified cleaning and upkeep, minimizing downtime

Technical Parameters:

Model	RP-FQ600	RP-FQ800	RP-FQ1000	RP-FQ1200
Max. Width of bag making	550mm	750mm	950mm	1150mm
Max. Length of bag making	1600mm	1600mm	1600mm	1600mm
Bag making speed	30-130pcs/min	30-130pcs/min	30-120pcs/min	30-100pcs/min
Main power	1.1KW	1.5KW	2.2KW	3.0KW
Weight	700KG	800KG	900KG	1000KG
Overall size	2900×1300×1500	2900×1500×1600	3200×1800×1700	3400×2000×1800

Product details:

This cold-cut bag making machine is a professional equipment for producing bottom-sealed plastic bags, suitable for various scenarios such as shopping bags, commodity bags and flat-bottomed bags. The equipment supports multiple plastic raw materials such as PE, PP, PVC, etc., and has high flexibility, which can meet the needs of small-batch customized production and can quickly switch production specifications. Adopting a modular design, it is convenient for cleaning and maintenance. Combined with an accurate metering system, it effectively reduces raw material waste and improves production efficiency and cost-effectiveness.

Related Products:

High Speed Monolayer (Single layer) Film blowing Machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP. These films are widely used in packaging, agriculture, and industrial applications.

ABA Three-Layer Film Blowing Machine

ABA Three-Layer Film Blowing Machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

AB 2 Layer Co-extrusion Film Blowing Machine

AB layer film blowing machine is a two-layer co-extrusion system used to produce films with two distinct material layers (A and B) for enhanced performance, cost efficiency, or functional properties. Unlike ABA films (A-B-A symmetric structure), AB films have an asymmetric two-layer design.

ABC Three-Layer Co-extrusion Film Blowing Machine

ABC Three-Layer Co-extrusion Film Blowing Machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

FAQs Related to
Bag Making Machine

Your concerns about quality, customization, service and other issues related to Bag Making Machine are answered here, and if you have special customization needs, you can contact the experts online!

Get in touch

What types of plastic raw materials does this bag making machine support?

It supports a variety of plastic raw materials, including PE, PP, PVC, etc., and can be customized according to customer requirements to meet the production needs of different raw materials.

Is the bag making machine suitable for small-batch production?

Yes, the equipment is highly flexible and can be customized for small-batch production according to customer requirements, with the ability to quickly switch production specifications.

Is the bag-making machine easy to clean and maintain?

The equipment features a modular design, making cleaning and maintenance simple. Regular cleaning and inspections are sufficient to maintain the equipment in good operating condition.

Does the bag-making machine experience raw material waste during production?

The equipment is equipped with an accurate dosing system, which minimizes raw material waste and ensures the efficiency and cost-effectiveness of the production process.

Have More Detailed Customisation Needs?

With more than 20 years of experience in manufacturing blown film machines, we can meet your special customization needs!
