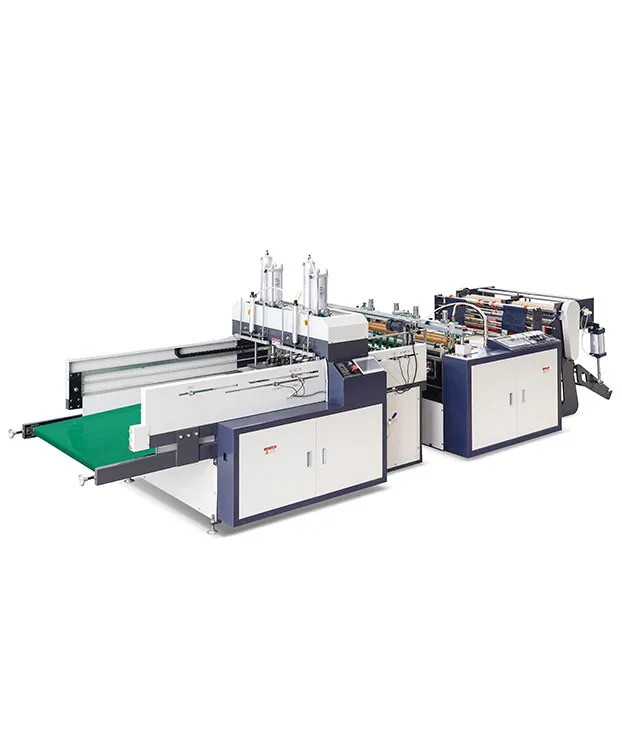

Hot Cutting Plastic Bag Making Machine (2 Lines Vest Bags)

A double-line heat sealing & cutting T-shirt bag making machine is a specialized device designed to mass-produce T-shirt bags (also called vest-type carry bags) with two parallel heat-sealed edges and a clean-cut handle section. These machines are widely used for supermarket, retail, and promotional bags.
Features:
Bag width 200-400mm
Bag length:+1 mm 300-700mm
Speed 120-260 pcs/minx2
Bag Single Thickness 0.006mm-0.03mm
Main Power 1.5KW

Applications:

Plastic Bag
Plastic Bag
Plastic Bag

Technical Parameters:

Model RP-G450x2 RP-G500x2
Bag width 200-400mm 200-450mm
Bag length:+1 mm 300-700mm 300-700mm
Speed 120-260 pcs/minx2 120-260 pcs/minx2
Bag Single Thickness 0.006mm-0.03mm 0.006mm-0.03mm
Main Power 1.5KW 1.5KW
Servo motor 2.4KW 2.4KW
Servo driver SERVO MOTOR 2.4KW SERVO MOTOR2.4KW
Inverter 1.5KW 1.5KW
Weight 3500KG 4000KG
Dimension 6500x2400x2000mm 6500X2600x2000mm
Product details:

Advantages Over Single-Line Machines
✔ Higher output (dual sealing = faster production).
✔ Stronger handles (double-sealed edges prevent tearing).
✔ Consistent quality (precision alignment).
