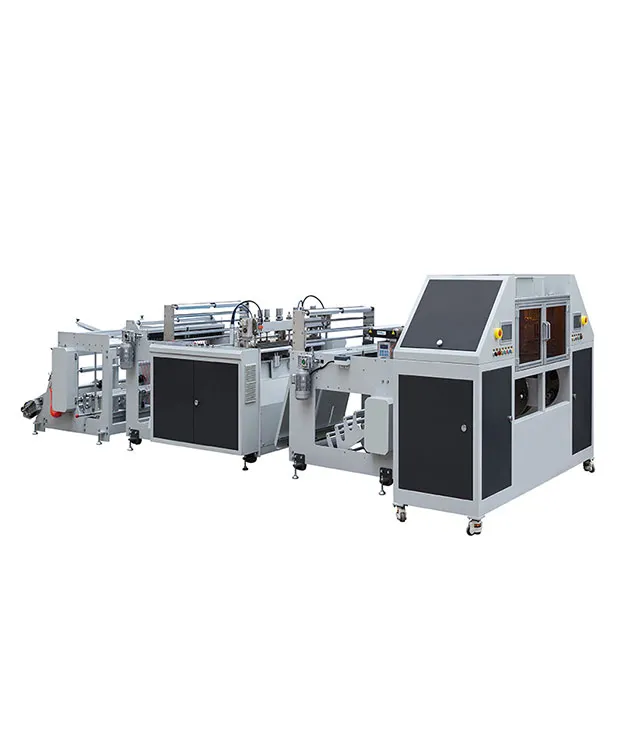

Plastic Roll Bag Make Machine

Plastic Roll Bag Make Machine

A plastic roll bag making machine is a type of packaging equipment used to manufacture plastic bags from rolls of plastic film. RUIPAI roll bag making machine for continuous production of plastic roll bags. Automatic winding and cutting system for high efficiency.
Features:
Suitable materials HDPE
Bag making length 400-1500mm
Bag making width 200-400mm
Bag making thickness 0.006-0.025mm
Bag making speed 50-230pcs/minx2
Get a Quote Play Product Video
Applications Advantages Parameters Details

Applications:

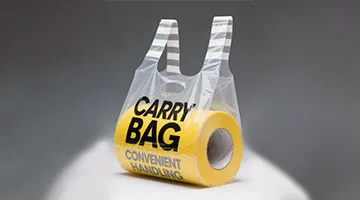

Plastic Roll Bag

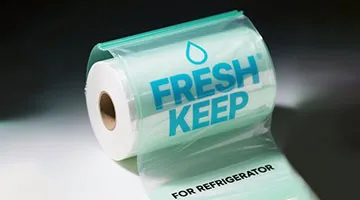

Plastic Roll Bag

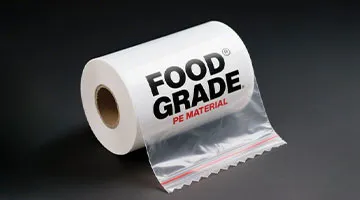

Plastic Roll Bag
Advantages of Mono layer Blown Film:

RUIPAI roll bag making machine for continuous production of plastic roll bags. Automatic winding and cutting system for high efficiency.

Technical Parameters:

Model RP-500x2 RP-1000(single line)
Suitable materials HDPE HDPE
bag making length 400-1500mm 400-1500mm
bag making width 200-400mm 300-800mm
Bag making thickness 0.006-0.025mm 0.008-0.02mm
bag making speed 50-230pcs/minx2 50-200pcs/min
Max liner speed 80m/min 80m/min
Total power 20kw 14kw
Max. sealing layer 8 layer 8 layers
Weight 2000kg 2000kg
Overall size 7000x1850x1750mm 7000×1850x1750mm



Ruipai is continuously seeking for development their products, we reserves the right to supply the improved product without advance notice.

Product details:

RUIPAI roll bag making machine for continuous production of plastic roll bags. Automatic winding and cutting system for high efficiency.

Related Products:

High Speed Monolayer (Single layer) Film blowing Machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP. These films are widely used in packaging, agriculture, and industrial applications.

ABA Three-Layer Film Blowing Machine

ABA Three-Layer Film Blowing Machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

AB 2 Layer Co-extrusion Film Blowing Machine

AB layer film blowing machine is a two-layer co-extrusion system used to produce films with two distinct material layers (A and B) for enhanced performance, cost efficiency, or functional properties. Unlike ABA films (A-B-A symmetric structure), AB films have an asymmetric two-layer design.

ABC Three-Layer Co-extrusion Film Blowing Machine

ABC Three-Layer Co-extrusion Film Blowing Machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

FAQs Related to
Bag Making Machine

Your concerns about quality, customization, service and other issues related to Bag Making Machine are answered here, and if you have special customization needs, you can contact the experts online!
Get in touch
What types of plastic raw materials does this bag making machine support?
Yes, the equipment is highly flexible and can be customized for small-batch production according to customer requirements, with the ability to quickly switch production specifications.
Is the bag making machine suitable for small-batch production?
It supports a variety of plastic raw materials, including PE, PP, PVC, etc., and can be customized according to customer requirements to meet the production needs of different raw materials.
Is the bag-making machine easy to clean and maintain?
The equipment features a modular design, making cleaning and maintenance simple. Regular cleaning and inspections are sufficient to maintain the equipment in good operating condition.
Does the bag-making machine experience raw material waste during production?
The equipment is equipped with an accurate dosing system, which minimizes raw material waste and ensures the efficiency and cost-effectiveness of the production process.
