Can One Printing Machine Handle Both Narrow and Wide Jobs?

You've got a mix of orders—some narrow film pouches, some wide industrial sacks. Buying two presses isn't practical, but you worry that a single machine will compromise on one end or the other. A printing machine that claims to handle a wide range of web widths needs to deliver consistent quality across the entire spectrum, not just at the sweet spot. The High Speed Stack Type Flexo Printing Machine offers three base widths—600mm, 800mm, and 1000mm—with the same chamber doctor blade and ceramic anilox system across all configurations. This article walks through how the press maintains quality across narrow and wide runs, what printing length flexibility adds to your capability, and how the stack-type design saves space while delivering full performance.

First Questions About Width and Versatility

Two Practical Concerns—Answered Directly

Q: Can the same press run a 200mm-wide film and a 900mm-wide sack without quality loss?

A: Yes. The chamber doctor blade system delivers consistent ink transfer regardless of web width. The press maintains registration and color density across the full range, as long as you stay within the machine's maximum width.

Q: Does a wider machine cost more to operate on narrow jobs?

A: Not significantly. Ink consumption is driven by printed area, not web width. The main difference is the initial investment—but the ability to take both narrow and wide jobs often justifies the wider model.

Printing Length — The Overlooked Spec That Defines Your Capability

Most buyers obsess over width and speed, but printing length range is what determines whether you can take certain jobs. The RP-H series covers 191mm to 914mm—a broad span that accommodates everything from short-run food films to long industrial bags. Without that range, you're either turning down jobs or running them with poor registration and wasted material.

Short Repeats for High-Volume Consumables

Flexible pouches, shrink sleeves, and snack food packaging typically use repeats under 400mm. The press runs these at full 120m/min speed, with the chamber doctor blade maintaining precise ink volume for consistent color across millions of impressions.

Long Repeats for Industrial and Specialty Packaging

Woven PP sacks, large paper bags, and heavy-duty covers often require repeats above 600mm. The RP-H series extends to 914mm, so you can take these larger jobs without investing in a second, longer press.

Stack-Type Design — Compact Footprint With Full Capability

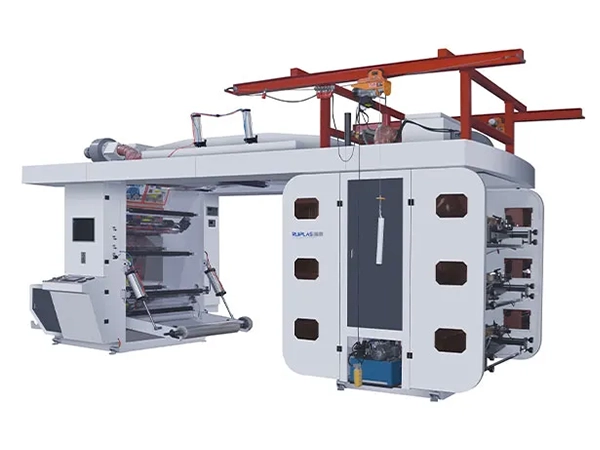

Stack-type flexo presses stack printing units vertically, saving floor space compared to CI (central impression) or in-line presses. The High Speed Stack Type Flexo Printing Machine uses this design to offer up to 6 colors in a footprint that fits most converting facilities. But compact doesn't mean cramped—the vertical stack provides easy access for plate changes and maintenance.

Space Savings Without Sacrificing Registration

The vertical arrangement keeps the web path short and direct, reducing tension variation and improving registration stability. You get the space efficiency of a stack press with the print quality that converters expect.

Three Frame Sizes for Different Drying Needs

The RP-H series comes in H2, H4, and H6 frame sizes—each with the same web widths but different overall lengths. The H2 is most compact (approx. 4000mm), while the H6 offers extended drying sections for solvent-based or high-coverage inks.

Chamber Doctor Blade + Ceramic Anilox — The Ink System That Delivers Consistency

Print quality in flexo depends almost entirely on how ink is metered and transferred. The RP-H series uses a chamber doctor blade system paired with a ceramic anilox roller. This combination delivers a uniform ink film, minimizes solvent evaporation, and reduces waste compared to open-fountain systems.

Why the Chamber Doctor Blade Outperforms Open Fountains

The chamber seals the ink around the anilox roller, ensuring uniform cell filling and transfer. There's no splashing, no viscosity drift from evaporation, and no constant operator attention. Runs are cleaner, colors more consistent, and the pressroom stays cleaner.

Ceramic Anilox — Longer Life, Stable Color

Ceramic anilox rollers resist wear from abrasive pigments and maintain their cell volume far longer than chrome rollers. That means your color density stays stable over years of production—not just the first few months.

Technical Specifications Across the RP-H Series

Applications That Benefit From Width and Length Flexibility

The RP-H series serves diverse packaging segments where both web width and repeat length vary:

Flexible Film Packaging — Food, Personal Care, Shrink Sleeves

For pouches, shrink sleeves, and stand-up bags, the 600mm or 800mm widths handle most common formats, while the short repeat range (191-400mm) matches high-speed film runs. The chamber doctor blade ensures consistent ink coverage across the entire web.

Paper and Cardboard — Shopping Bags, Cartons, Labels

Paper-based packaging often uses repeats from 300-600mm. The 800mm or 1000mm widths accommodate larger sheets, and the press handles paper substrates without special modifications.

Woven Fabric and Industrial Sacks — PP, Bulk Bags

Woven polypropylene sacks and bulk bags typically require wider webs (800-1000mm) and longer repeats (up to 914mm). The RP-H series covers these with the H4 or H6 frame sizes, providing the drying capacity needed for heavy ink coverage.

Straight Answers on Selecting the Right Model

Q: Which frame size (H2, H4, or H6) should I choose?

A: The H2 is the most compact and cost-effective for standard printing without extended drying. The H4 offers more drying capacity for solvent-based inks or faster speeds. The H6 provides the longest drying section for heavy coverage or special inks. All share the same printing specifications—the difference is drying length and overall footprint.

Q: Does the 120m/min speed apply to all substrates?

A: Yes, the machine is rated at 120m/min across supported substrates. However, heavier materials (like thick cardboard or woven fabric) may run slightly slower to maintain optimal impression pressure. The frequency control lets you adjust speed to match substrate behavior.

Q: How many color stations does the machine support?

A: The RP-H series can be configured with 2 to 6 colors, depending on your needs. The stack-type design makes it easy to add or remove units as your printing requirements change.

Request a Stack-Type Flexo Press Configuration

A high-speed stack-type flexo printing machine with 600-1000mm web width options, 120m/min speed, and 191-914mm printing length range is the practical choice for converters who need versatility without a massive footprint. The RP-H series delivers chamber doctor blade + ceramic anilox roller for consistent ink transfer, stack-type configuration for space savings, 2.38mm plate thickness compatibility, and three frame sizes (H2, H4, H6) to match drying and space requirements.

Whether you're printing flexible films, paper packaging, or woven industrial bags, this press offers the width, length, and speed flexibility that modern converting demands. With models covering 600mm, 800mm, and 1000mm web widths—and printing lengths from 191mm to 914mm—you can match the machine to your exact job mix.

Contact Ruipai for a stack-type flexo press configuration assessment → their team can help you select the right model, width, and frame size for your substrates and production volume. Get a press that delivers consistent quality across the full range of your work.
