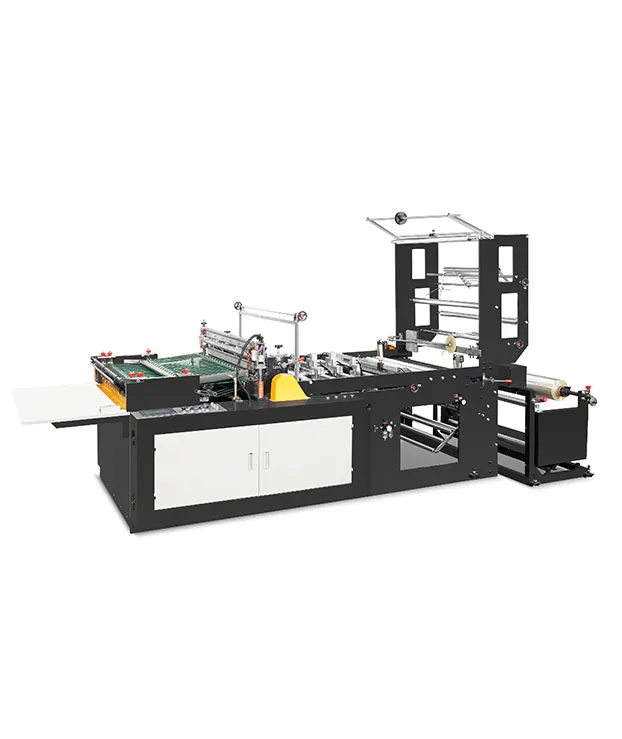

Side Sealing Bag Making Machine

Side Sealing Bag Making Machine

This machine is suitable for heat seal and hot cutting of BOPP and OPP, PE film is an ideal device to produce bags for socks, towels, bread bags. The machine is featured by computer controlled length fixing, photocell tracking, stable performance and fast speed. It has the functions of automatic gluing, automatic punching.
Features:
Max. Bag Sealing Width 990mm
Max. Bag Sealing Length 550mm
Bag Thickness 0.01-0.10mm
Bag Making Speed 140pcs/min
Power of Main Motor 1.1kw
Get a Quote Play Product Video
Applications Parameters

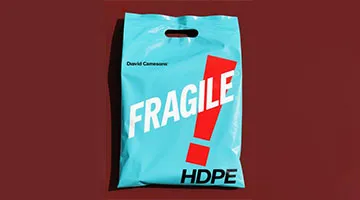

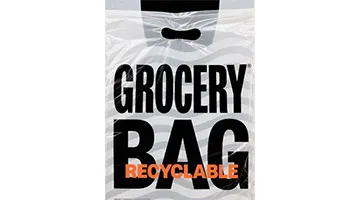

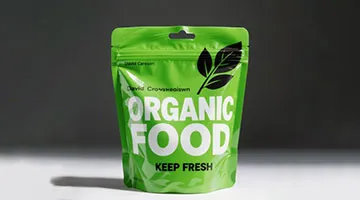

Applications:

Side Sealing Machine
Side Sealing Machine
Side Sealing Machine

Technical Parameters:

Model RQL-600 RQL-800 RQL-1000
Max. Bag Width of Sealing 990mm 990mm 990mm
Max. Bag Length of Sealing 550mm 750mm 950mm
Bag Thickness 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Bag Making Speed 140pcs/min 40-140pcs/min 40-140pcs/min
Power of Main Motor 1.1kw 1.5kw 2.2kw
Temperature of Welding Knife 0-300℃ 0-300℃ 0-300℃
Weight of Machine 700kg 900kg 1000kg
Overall Dimensions 3000×1200×1500mm 3000×1400×1500mm 3000×1600×1500mm



Ruipai is continuously seeking for development their products, we reserves the right to supply the improved product without advance notice.

Related Products:

High Speed Monolayer (Single layer) Film blowing Machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP. These films are widely used in packaging, agriculture, and industrial applications.

ABA Three-Layer Film Blowing Machine

ABA Three-Layer Film Blowing Machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

AB 2 Layer Co-extrusion Film Blowing Machine

AB layer film blowing machine is a two-layer co-extrusion system used to produce films with two distinct material layers (A and B) for enhanced performance, cost efficiency, or functional properties. Unlike ABA films (A-B-A symmetric structure), AB films have an asymmetric two-layer design.

ABC Three-Layer Co-extrusion Film Blowing Machine

ABC Three-Layer Co-extrusion Film Blowing Machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

FAQs Related to
Bag Making Machine

Your concerns about quality, customization, service and other issues related to Bag Making Machine are answered here, and if you have special customization needs, you can contact the experts online!
Get in touch
What types of plastic raw materials does this bag making machine support?
Yes, the equipment is highly flexible and can be customized for small-batch production according to customer requirements, with the ability to quickly switch production specifications.
Is the bag making machine suitable for small-batch production?
It supports a variety of plastic raw materials, including PE, PP, PVC, etc., and can be customized according to customer requirements to meet the production needs of different raw materials.
Is the bag-making machine easy to clean and maintain?
The equipment features a modular design, making cleaning and maintenance simple. Regular cleaning and inspections are sufficient to maintain the equipment in good operating condition.
Does the bag-making machine experience raw material waste during production?
The equipment is equipped with an accurate dosing system, which minimizes raw material waste and ensures the efficiency and cost-effectiveness of the production process.
