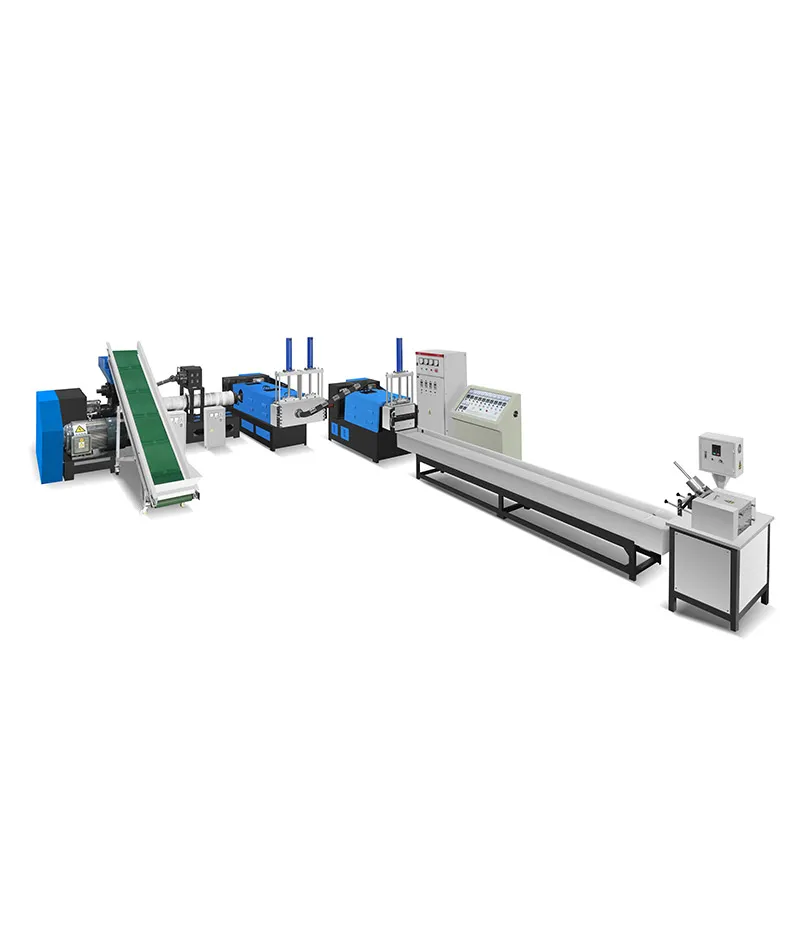

Three Stages Plastic Recycling Machine

A three-stage plastic recycling machine is a system designed to process waste plastic through three key phases: shredding/washing, melting/extrusion, and pelletizing.
Features:
Diameter of Screw 1st:φ200, 2nd:φ200, 3rd:φ200
L/D 1st--14:1, 2nd--13:1, 3rd--8:1
Ration Speed of Screw 10-110rpm
Main Motor Power 110+55+37kw
Max.Extrusion Output 600kg/h

Applications:

Technical Parameters:

Model RP-D200
Diameter of Screw 1st:φ200
2nd:φ200
3rd:φ200
L/D 1st--14:1
2nd--13:1
3rd--8:1
Ration Speed of Screw 10-110rpm
Main Motor Power 110+55+37kw
Max.Extrusion Output 600kg/h
Machine Weight 10T
Overall Dimensions(L×W×H) 12000×8000×2000mm



Ruipai is continuously seeking for development their products, we reserves the right to supply the improved product without advance notice.

Product details:

This setup is commonly used to convert plastic waste (like bottles, films, or industrial scraps) into reusable plastic pellets for manufacturing new products.

Related Products:

High Speed Monolayer (Single layer) Film blowing Machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP. These films are widely used in packaging, agriculture, and industrial applications.

ABA Three-Layer Film Blowing Machine

ABA Three-Layer Film Blowing Machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

AB 2 Layer Co-extrusion Film Blowing Machine

AB layer film blowing machine is a two-layer co-extrusion system used to produce films with two distinct material layers (A and B) for enhanced performance, cost efficiency, or functional properties. Unlike ABA films (A-B-A symmetric structure), AB films have an asymmetric two-layer design.

ABC Three-Layer Co-extrusion Film Blowing Machine

ABC Three-Layer Co-extrusion Film Blowing Machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

FAQs Related to
Plastic Pelletizing Machine

Your concerns about quality, customization, service and other issues related to Plastic Pelletizing Machine are answered here, and if you have special customization needs, you can contact the experts online!
Get in touch
Does the plastic granulator support the processing of multiple types of plastic?
The equipment is relatively easy to operate, featuring a touchscreen interface. Ordinary operators can operate it after basic training. However, to ensure operational efficiency and safety, regular training is recommended.
Does the equipment require professional operators?
Yes, the plastic granulator can process various types of plastic, such as PE, PP, PVC, etc., with strong adaptability to meet diverse waste plastic recycling needs.
Is the plastic granulator suitable for small-scale production?
Yes, the plastic granulator can adjust production capacity according to needs, making it suitable for both large-scale production and small to medium-sized enterprises or pilot production.
Is the equipment easy to clean and maintain?
The equipment is designed for easy cleaning, with key components such as screws and molds being easy to disassemble and clean. Daily maintenance is also straightforward, significantly reducing downtime and repair time.
