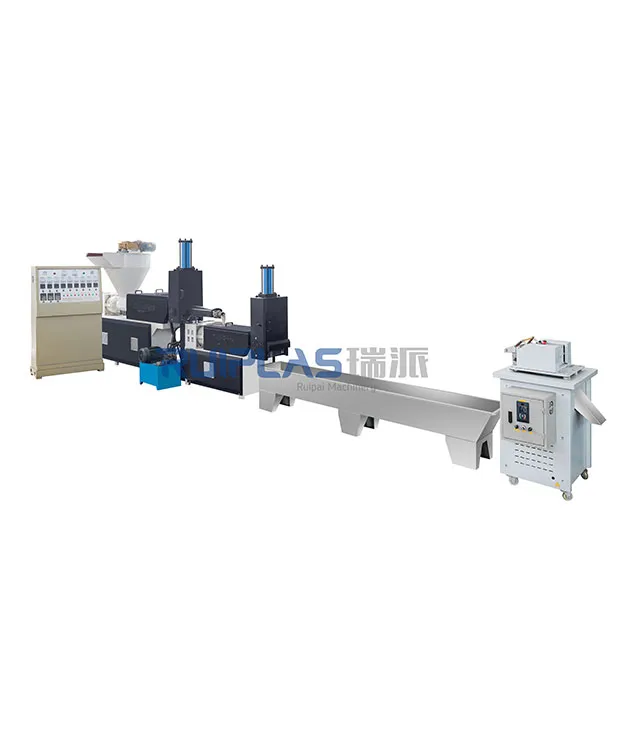

Two Stages Plastic Recycling Machine

Two-stage plastic recycling machine is a system designed to process waste plastic through two main steps: shredding/granulating and extrusion/pelletizing.
Features:
Diameter of Screw: 100mm+90mm
Major Diameter Ratio of Screw Stem (L/D): 22:01
Ration Speed of Screw: 10-110rpm
Main Motor Power: 22kw
Max. Extrusion Output: 120kg/h

Applications:

Technical Parameters:

Model RP-C100 RP-C110 RP-C120
Diameter of Screw 100mm+90mm 110mm+100mm 120mm+110mm
Major Diameter Ratio of Screw Stem (L/D) 22:01 22:01 22:01
Ration Speed of Screw 10-110rpm 10-110rpm 10-110rpm
Main Motor Power 22kw 30kw 37kw
Max. Extrusion Output 120kg/h 150kg/h 180kg/h
Machine Weight 3000kg 3500kg 4000KG
Overall Dimensions (LxWxH) 8000×1350×1300 8200x1350x1300 8500×1350× 1300



Ruipai is continuously seeking for development their products, we reserves the right to supply the improved product without advance notice.

Product details:

This type of machine is commonly used to recycle plastic waste into reusable pellets or flakes for manufacturing new products.

Related Products:

High Speed Monolayer (Single layer) Film blowing Machine

Mono layer film blowing machine is a type of plastic extrusion equipment used to produce single-layer plastic films, commonly made from materials like LDPE, LLDPE, HDPE, or PP. These films are widely used in packaging, agriculture, and industrial applications.

ABA Three-Layer Film Blowing Machine

ABA Three-Layer Film Blowing Machine is used to produce three-layer co-extruded films with an A-B-A structure, where the outer layers (A) and the inner layer (B) are made of different materials. This setup enhances film properties like strength, barrier performance, and cost efficiency.

AB 2 Layer Co-extrusion Film Blowing Machine

AB layer film blowing machine is a two-layer co-extrusion system used to produce films with two distinct material layers (A and B) for enhanced performance, cost efficiency, or functional properties. Unlike ABA films (A-B-A symmetric structure), AB films have an asymmetric two-layer design.

ABC Three-Layer Co-extrusion Film Blowing Machine

ABC Three-Layer Co-extrusion Film Blowing Machine is a three-layer co-extrusion system used to produce films with three distinct material layers (A-B-C), each serving a specific functional purpose.

FAQs Related to
Plastic Pelletizing Machine

Your concerns about quality, customization, service and other issues related to Plastic Pelletizing Machine are answered here, and if you have special customization needs, you can contact the experts online!
Get in touch
Does the plastic granulator support the processing of multiple types of plastic?
The equipment is relatively easy to operate, featuring a touchscreen interface. Ordinary operators can operate it after basic training. However, to ensure operational efficiency and safety, regular training is recommended.
Does the equipment require professional operators?
Yes, the plastic granulator can process various types of plastic, such as PE, PP, PVC, etc., with strong adaptability to meet diverse waste plastic recycling needs.
Is the plastic granulator suitable for small-scale production?
Yes, the plastic granulator can adjust production capacity according to needs, making it suitable for both large-scale production and small to medium-sized enterprises or pilot production.
Is the equipment easy to clean and maintain?
The equipment is designed for easy cleaning, with key components such as screws and molds being easy to disassemble and clean. Daily maintenance is also straightforward, significantly reducing downtime and repair time.
